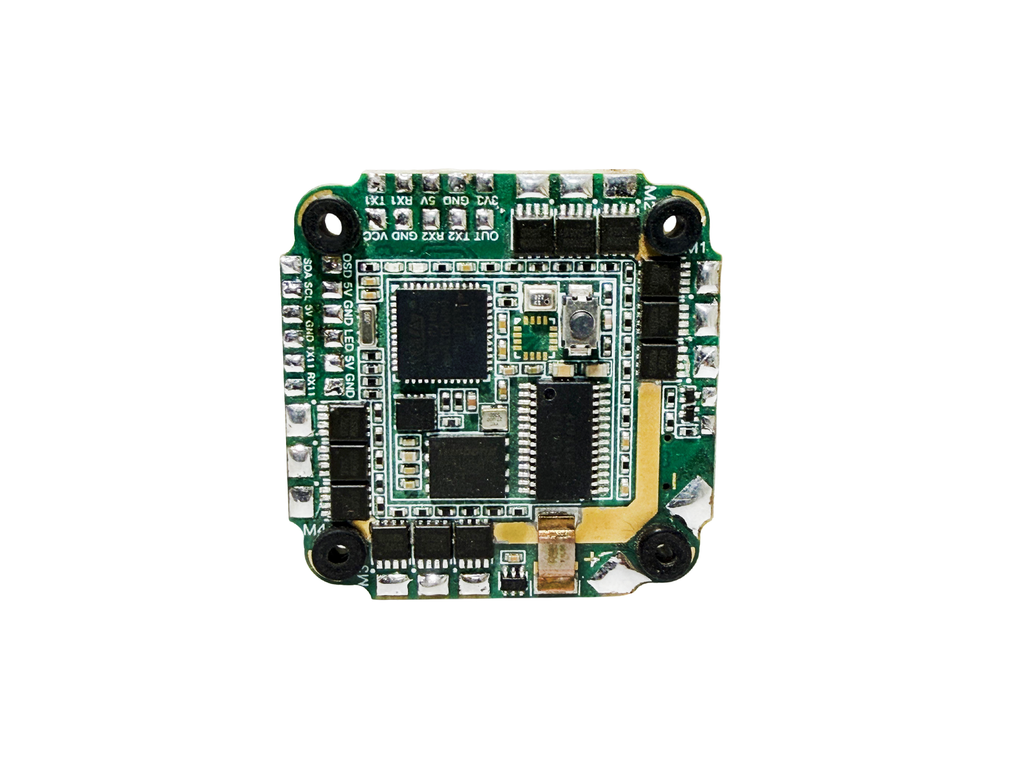

Indi-F4 AIO Flight controller

Indi-F4 AIO Flight controller

Rs. 10,000.00

  1. N-Channel MOSFET — DFN-8 package (3×3 mm or 3.3×3.3 mm)

  2. STM32F411 — Primary flight controller MCU

  3. ICM-42688 — 6-axis gyroscope/accelerometer

  4. BMP280 — Barometric pressure sensor

  5. W25Q18JVPIQ — SPI Flash memory

  6. AT7456E — On-screen display (OSD) character overlay chip

  7. INA199A — Current-sensing amplifier

  8. 0612 Alloy Sampling Resistors — For current measurement

  9. KSMBJ30CA — TVS diode for transient voltage suppression

  10. BOOT Button — Firmware/bootloader access

  11. ESC Firmware Pads — 4-pin, 0.8 mm spacing; use a burning probe for flashing

  12. EFM8BB21F16G — ESC microcontroller

  13. FD6288Q — ESC gate driver

  14. 5 V DC-DC Converter

  15. 3.3 V LDO Regulator

  16. 8 V DC-DC Converter

  17. Standard AIO Mounting Holes — 25.5 × 25.5 mm pattern
